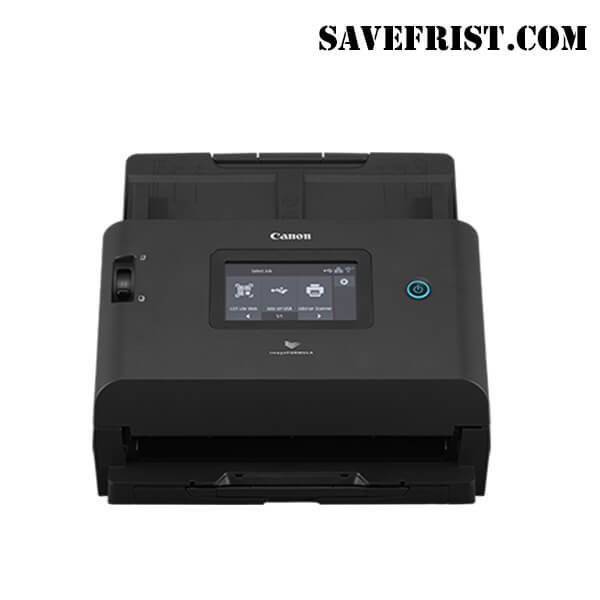

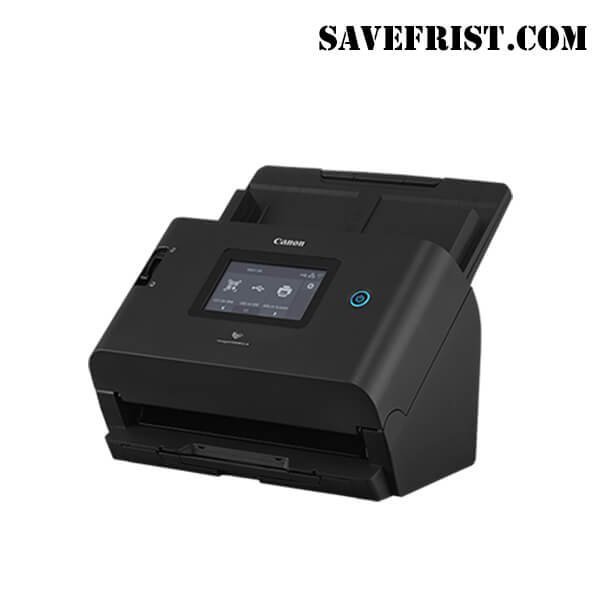

Canon imageFORMULA DR-S350NW Scanner
| Specification | |
| Scan | |
|
Type |
A4 Desktop Sheet-Fed Scanner (ADF) |
| Scanning Speed*1 | |
| Greyscale (Simplex / Duplex) | 200 dpi: 50 ppm / 100 ipm |
| 300 dpi: 50 ppm / 100 ipm | |
| 600 dpi: 20 ppm / 40 ipm | |
| Colour (Simplex / Duplex) | 200 dpi: 50 ppm / 100 ipm |
| 300 dpi: 40 ppm / 80 ipm | |
| 600 dpi: 10 ppm / 20 ipm | |
| Scanning Element (Sensor) | Contact Image Sensor (CIS) |
| Light Source | Light-Emitting Diode (LED) |
| Scanning Side Capability | Simplex / Duplex |
| Scanning Modes | Black and White, Greyscale, Colour, Active Threshold, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II |
| Other Features / Functions | Skip Blank Page, Folio, Double Feed Detection, Double Feed Detection Ignore, Barcodes / 2D Codes Detection |
| Optical Resolution | Up to 600 dpi |
| Output Resolution | 100, 150, 200, 240, 300, 400, 600, 1200 dpi |
| Suggested Daily Volume (SDV) | 6,000-9,000 sheets/day |
| Media | |
|
Media Size (W x L) |
|
| Plain Paper | Min.: 50.8 x 54 mm |
| Max.: 216 x 356 mm (Up to 5588 mm in Long Document Mode) | |
| Business Card | Min.: 50 x 85 mm |
| Max.: 55 x 91 mm | |
| Plastic Card (ISO Standard) | 86 x 54 mm |
| Passport (ISO Standard) | 125 x 88 mm |
| Media Thickness and Weight | |
| Plain Paper | Separation Feed: 27-209 g/m² (0.04-0.25 mm) |
| Non-separation Feed: 27-255 g/m² (0.04-0.3 mm) | |
| Business Card | 128-255 g/m² (0.15-0.3 mm) |
| Plastic Card | 1.4 mm or less |
| Passport | 4 mm or less (Passport + Carrier Sheet) |
| Output File Formats | PDF, JPEG, TIFF, PNG, PPTX, BMP, DOCX*2, XLSX*2 |
| Automatic Document Feeder (ADF) Capacity*3 | 60 sheets |
| Connectivity and Software | |
|
Interface |
|
| USB | USB 3.2 / USB 2.0 |
| Ethernet | 10Base-T/100Base-TX/1000Base-T |
| Wi-Fi | IEEE802.11a/b/g/n/ac |
| Software | ISIS / TWAIN / WIA Driver, CaptureOnTouch |
| General | |
|
Power Supply |
AC 100-240V 50/60 Hz (Using AC adapter) |
| Power Consumption | |
| Scanning (Max.) | 23 W |
| Sleep Mode | 1.8 W |
| Power OFF (Max.) | 0.1 W |
| Operating Environmental Conditions | |
| Temperature | 10 to 35°C |
| Humidity | 20 to 80% RH |
| Dimensions (W x D x H) | |
| Trays Closed | 291 x 267 x 242 mm |
| Trays Opened | 291 x 600 x 378 mm |
| Weight (Approx.) | 3.4 kg (Without AC adapter) |
| Replacement Components and Add-Ons | |
|
Consumables / Options |
Exchange Roller Kit, Carrier Sheet (Passport), Carrier Sheet (A4) |
| Accessories | Flatbed Scanner Unit 102, Flatbed Scanner Unit 202 |
