| SPECIFICATION |
| Maximum Printing Resolution |
600 (horizontal) x 1200 (vertical) dpi |
| Print Head / Ink |
Type: |
Individual Ink Cartridges |
| Number of Nozzles: |
Total 4,352 nozzles |
| Ink Cartridge: |
 PGI-2700 (Cyan, Magenta, Yellow, Black) |
| Optional: PGI-2700XL (Cyan, Magenta, Yellow, Black) |
| Print Speed*1Â (Approx.) |
Document: Colour: |
15.5 ipm |
| Based on ISO / IEC 24734. |
ESAT / Simplex |
|
Document: Colour: |
Max. 26.5 ppm*2 |
|
Document: Mono: |
24.0 ipm |
|
ESAT / Simplex |
|
Document: Mono: |
Max. 32.5 ppm*2 |
|
Document: Colour: |
9.5 ipm |
|
ESAT / Duplex |
|
Document: Mono: |
13.0 ipm |
|
ESAT / Duplex |
|
Document: Colour: |
7 sec |
|
FPOT Ready / Simplex |
|
Document: Mono: |
6 sec |
|
FPOT Ready / Simplex |
|
Document: Colour: |
12 sec |
|
FPOT Sleep / Simplex |
|
Document: Mono: |
10 sec |
|
FPOT Sleep / Simplex |
| Printable Width |
Up to 203.2 mm (8") |
| Printable Area |
Bordered Printing: |
Top margin: 3 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (Letter, Legal: Left: 6.4 mm, Right: 6.3 mm) |
| Bordered Auto Duplex Printing: |
Top margin: 3 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (Letter, Legal: Left: 6.4 mm, Right: 6.3 mm) |
| Recommended Printing Area |
Top Margin: |
45.8 mm |
| Bottom Margin: |
36.8 mm |
| Paper Size |
A4, A5, B5, Letter, Legal, Oficio, B-Oficio*, M-Oficio, Foolscap, Legal (India), Executive, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10, C5, Monarch) |
| Custom size** [cassette (upper)]: width 89 - 216 mm, length 127 - 355.6 mm, [cassette (lower)]: width 210 - 216 mm, length 279.4 - 355.6 mm) |
|
| *Not supported for Mac. |
| **F4 is possible via custom size settings. |
| Paper Handling (Cassette1: Upper) |
Plain Paper |
A4, A5, B5, Letter, Legal = 250 |
| (Maximum Number) |
Photo Paper Pro Luster (LU-101) |
A4 = 10 |
|
Matte Photo Paper (MP-101) |
4 x 6" = 20, A4 = 10 |
|
Photo Paper Plus Glossy II (PP-201) |
4 x 6" = 20, A4 = 10 |
|
High Resolution Paper (HR-101N) |
A4 = 65 |
|
Photo Paper Plus Semi-Gloss (SG-201) |
4 x 6" = 20, A4, 8 x 10" = 10 |
|
Envelope |
Envelopes (DL, COM10, C5, Monarch) = 10 |
| Paper Output |
Approx. 75 pages (A4, LTR, LGL) |
| Support Media for |
Type: |
Plain Paper |
| Auto 2-sided Printing |
Size: |
A4, Letter |
| Paper Weight |
Cassette 1 (Upper): |
Plain Paper: 64-105 g/m2, |
| Canon specialty paper: max paper weight: approx. 275 g/m2 |
| (Photo Paper Plus Glossy II PP-201) |
| Ink End Sensor |
Electrical pulse detect + Dot count |
| Print Head Alignment |
Auto / Manual |
| Scan*3 |
|
| Scanner Type |
Flatbed & ADF |
| Scanning Method |
CIS (Contact Image Sensor) × 2 (2-sided) |
| Duplex Scanning |
Available (Single pass 2-sided scan) |
| Optical Resolution*4 |
1200 x 1200 dpi |
| Selectable Resolution*5 |
25 - 19200 dpi |
| Scanning Bit Depth (Input / Output) |
Grayscale: |
16 bit / 8 bit |
| Colour: |
48 bit / 24 bit (RGB each 16 bit / 8 bit) |
| Scanning Speed *6 *14 (Approx.) |
Document (ADF): Colour |
16.0 ipm |
| scESAT30secA / Simplex |
| Document (ADF): Mono |
19.0 ipm |
| scESAT30secA / Simplex |
| Document (ADF): Colour |
23.0 ipm |
| scESAT30secA / Duplex |
| Document (ADF): Mono |
23.0 ipm |
| scESAT30secA / Duplex |
| Document (ADF): Colour |
15.0 ipm |
| scEFTP30secF / Simplex |
| Document (ADF): Mono |
17.5 ipm |
| scEFTP30secF / Simplex |
| Document (ADF): Colour |
21.0 ipm |
| scEFTP30secF / Duplex |
| Document (ADF): Mono |
21.5 ipm |
| scEFTP30secF / Duplex |
| Maximum Document Size |
Flatbed |
A4, Letter (216 x 297 mm) |
| ADF |
A4 / Letter / Legal |
| Copy |
|
| Maximum Document Size |
A4, Letter (216 x 297 mm) |
| ADF: A4 / Letter / Legal |
| Compatible Media |
Size: |
A6, A4, A5, B5, Letter, Legal, Oficio, B-Oficio, M-Oficio, Foolscap, Legal (India), Executive, 4 x 6", 5 x 7" |
| Type: |
Plain Paper |
| Photo Paper Plus Glossy II (PP-201) |
| Photo Paper Plus semi-Gloss (SG-201) |
| Matte Photo Paper (MP-101) |
| Photo Paper Pro Luster (LU-101) |
| Image Quality |
2 positions (Standard, High) |
| Density Adjustment |
9 positions, Auto intensity (AE copy) |
| Copy Speed*9Â (Approx.) |
Document: Colour: |
11.0 sec |
| Based on ISO / IEC 29183. |
sFCOT / Simplex |
| Click here for summary report |
Document (ADF): Colour: |
11.5 ipm |
| Click here for Document Print and Copy Speed Measurement Conditions |
ESAT / Simplex |
|
Document (ADF): B / W |
22.0 ipm |
|
ESAT / Simplex |
|
Document (ADF): Colour |
 6.0 ipm |
|
ESAT / Duplex |
|
Document (ADF): Mono |
10.0 ipm |
|
ESAT / Duplex |
| Multiple Copy |
Mono / Colour: |
Max. 99 pages |
| Fax |
|
| Type |
Desktop Transceiver (Super G3 / Color Communication) |
| Applicable Line |
PSTN (Public Switched Telephone Network) |
| Transmission Speed*8(Approx.) |
Mono: |
3 sec (33.6 kbps) |
| Colour: |
1 min (33.6 kbps) |
| Fax Resolution |
Mono: |
8 pels/mm x 3.85 lines/mm (Standard) |
| 8 pels/mm x 7.7 lines/mm (Fine) |
| 300 x 300 dpi (Extra Fine) |
| Colour: |
200 x 200 dpi |
| Print Size |
A4, Letter, Legal |
| Scanning Width |
208 mm (A4), 214 mm (Letter) |
| Modem Speed |
Maximum 33.6 kbps (Automatic fall back) |
| Compression |
Black: |
MH, MR, MMR |
| Colour: |
JPEG |
| Gradation |
Black: |
256 levels |
| Colour: |
24 bit Full color (RGB each 8 bit) |
| ECM (Error Correction Mode) |
ITU-T T.30 compatible |
| Automatic Dialing |
Coded Speed Dialing |
Max. 100 locations |
| Group Dialing |
Max. 99 locations |
| Transmission / Reception Memory *9 |
Approx. 250 pages |
| PC Fax |
|
| PC FAX |
Windows |
Available |
| Mac |
Available |
| Destination Number |
1 location |
| Black / Colour |
B / W transmission only |
| Network |
|
| Protocol |
SNMP (Standard MIB), TCP / IP |
| Wired LAN |
Network Type: |
IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Data Rate: |
10 M / 100 Mbps (auto switchable) |
| Wireless |
Network Type: |
IEEE802.11b/g/n |
| Frequency Band: |
2.4 GHz |
| Supported Channels: |
13-Jan |
| Range: |
indoor 50 m (depends on the transmission speed and conditions) |
| Security: |
WEP64 / 128 bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES) |
| Direct connection (Wireless LAN) |
Available |
| Printing Solutions |
|
| Apple AirPrint |
Available |
| Layout |
1-up (bordered only) |
Letter, A4, 4 x 6", 5 x 7", 8 x 10", A5, B5, Legal, A6, Oficio, M-Oficio, Foolscap Legal (India), Executive, Envelopes (DL, COM10, C5, Monarch) |
|
| Custom size [cassette (upper)]: width 89 - 216.0 mm, length 127 - 355.6 mm, [cassette (lower)]: width 210 - 216 mm, length 279.4 - 355.6 mm) |
| Print Quality*12 |
Standard / High |
| Microsoft Mobile Print |
Available |
| Layout |
1-up (bordered only) |
Letter, A4, 4 x 6", 5 x 7", 8 x 10", |
| A5, B5, Legal, Envelopes (DL, COM10) |
| Print Quality*13 |
Standard / High |
| Mopria |
Available |
| Canon Print Service Plugin |
Available |
| (for Android OS) |
| Cloud Service |
from smartphone or tablet: |
Available |
| from printer: |
Available |
| Canon PRINT |
Available |
| (for iOS / Android) |
| Canon Easy-PhotoPrint |
| (for Windows RT) |
| Layout |
1-up (bordered only) |
Letter, A4, 4 x 6", 5 x 7", 8 x 10", A5, B5, Legal, A6, Oficio, B-Oficio, M-Oficio, Foolscap, Legal (India), Executive |
| Print Quality |
Fixed |
| System Requirements |
Windows: |
Windows 10, Windows 8, Windows 7 SP1, Windows Vista SP2 |
| (Please visit https://asia.canon/support to check OS compatibility and to download the latest driver updates.) |
Macintosh: |
Mac OS X 10.8.5 and later |
|
Others: |
Chrome OS |
| General Specifications |
|

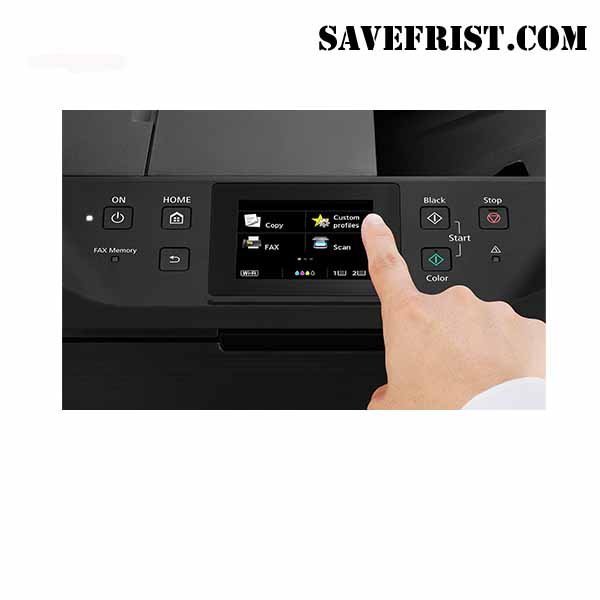

| Operation Panel |
Display: |
LCD (3.5 inch / 8.8 cm TFT Colour/ Touch) |
| Language: |
33 Languages Selectable: Japanese / English (mm & inch) / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovak / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Croatian / Thai / Vietnamese |
| ADF |
Paper Handling (Plain Paper 17 lb. Bond) |
A4 / Letter = 50, Legal = 10, Others = 1 |
| Auto 2-sided |
Available (Single pass 2-sided scan) |
| Interface |
USB A Port |
USB flash memory |
| USB B Port |
USB 2.0 |
| USB Flash Memory |
File Format *15 |
JPEG and TIFF (Exif-compliant) taken by DCF (Ver.1.0 / 2.0) compliant digital cameras. (Exif ver2.2 / 2.21 / 2.3 compliant) |
| Operating Environment*12 |
Temperature: 5 - 35°C |
| Humidity: 10 - 90% RHÂ (no dew condensation) |
| Recommended Environment*13 |
Temperature: 15 - 30°C |
| Humidity: 10 - 80% RHÂ (no dew condensation) |
| Storage Environment |
Temperature: 0 - 40°C |
| Humidity: 5 - 95% RHÂ (no dew condensation) |
| Quiet mode |
Available |
| Acoustic Noise (PC Print) (Approx.) |
Document (A4, Mono, Default)*10 |
56 dB(A) |
| Power |
AC 100 - 240 V, 50/60Hz |
| Power Consumption (Approx.) |
Standby (scanning lamp is off) |
0.9 W |
| USB connection to PC |
|
| OFF |
0.2 W |
| Copying*11Â (USB connection to PC): |
25 W |
| Duty Cycle |
up to 30,000 pages/month |
| Dimensions (W x D x H) (Approx.) |
Factory configuration |
463 x 394 x 291 mm |
| Paper installed (A4 / LTR) |
463 x 459 x 291 mm |
| Output / ADF trays extended |
463 x 607 x 329 mm |
| Weight (Approx.) |
11.4 kg |
