| HP LI M154 SPECIFICATION |
| Product naming |
|
| Model name |

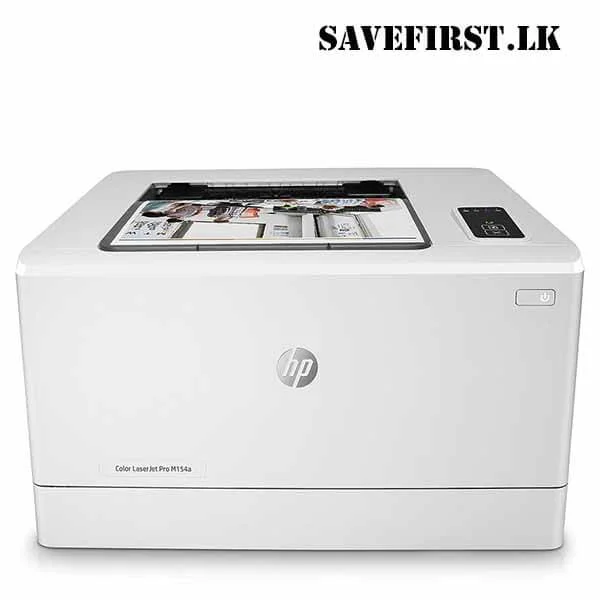

HP Color LaserJet M154a |
| Product number |
T6B51A |
| What's included and accessories |
|
| What's in the box |
HP Color LaserJet Pro M154a T6B51A); Introductory HP LaserJet Color cartridges (~700 color composite (C/Y/M) yield and ~800 page yield black); Installation guide; Printer documentation and software on CD-ROM; Power cord; USB cable |
| Connectivity |
|
| Ports |
Hi-Speed USB 2.0 port |
| Environmental |
|
| Acoustic power emissions |
6.2 B(A) (color); 6.2 B(A) (mono) |
| Operating humidity range |
30 to 70% RH |
| Non-Operating humidity range |
0 to 95% RH |
| Recommended operating temperature range (Celsius) |
17 to 25ºC |
| Recommended operating temperature range (Fahrenheit) |
63 to 77ºF |
| Storage temperature range (Celsius) |
-20 to 40ºC |
| Storage temperature range (Fahrenheit) |
-4 to 104ºF |
| Environmental specifications |
Mercury-free |
| Memory |
|
| Memory |
128 MB DDR, 128 MB NAND Flash |
| Maximum Memory |
128 MB DDR, 128 MB NAND Flash |
| Paper handling |
|
| Input capacity |
Up to 250 sheets (25 mm stack height) in Tray 2 |
| Standard input capacity (envelopes) |
Up to 15 mm (Recommended only 5 Envelopes or less at a time) |
| Output capacity |
Up to 100 sheets (10 mm stack height) |
| Media sizes supported (metric) |
Letter(216 x 280); Legal(216 x 356); Executive(184 x 267); Oficio 8.5x13(216 x 330); 4 x 6(102 x 152); 5 x 8(127 x 203); A4(210 x 299); A5(148 x 210); A6(105x148); B5(JIS)(182 x 257); B6(JIS)(128 x 182); 10x15cm(100 x 150); Oficio 216x340mm(216 x 340); 16K 195x270mm(195x270); 16K 184x260mm(184x260); 16K 197x273mm(197x273); Postcard(JIS)(100 x 147); Double Postcard(JIS)(147 x 200); Envelope #10(105 x 241); Envelope Monarch(98 x 191); Envelope B5(176 x 250); Envelope C5(162 x 229); Envelope DL(110 x 220); A5-R(210 x 148); |
| Media sizes supported (U.S. standard) |
Letter(8.5 x 11); Legal(8.5 x 14); Executive(7.2 x 10.5); Oficio 8.5x13(8.5 x 13); 4 x 6(4 x 6); 5 x 8(5 x 8); A4(8.3 x 11.7); A5(5.8 x 8.3); A6(4.1 x 5.8); B5(JIS)(7.2 x 10.1); B6(JIS)(5 x 7.2); 10x15cm (3.9 x 5.9); Oficio 216x340 mm(8.5 x 13.4); 16K 195x270mm(7.6 x 10.6); 16K 184x260mm(7.2 x 10.2); 16K 197x273mm(7.8 x 10.7); Postcard (JIS)(3.9 x 5.8); Double Postcard(JIS)(5.8 x 7.9); Envelope #10(4.1 x 9.5); Envelope Monarch(3.9 x 7.5); Envelope B5(6.9 x 9.8); Envelope C5(6.4 x 9); Envelope DL(4.3 x 8.7); A5-R(8.3 x 5.8) |
| Media sizes, custom (metric) |
76 x 127 to 216 x 356 mm |
| Media sizes, custom (U.S. standard) |
3 x 5 to 9 x 14.01 in |
| Media types |
Paper (bond, brochure, colored, glossy, heavy, letterhead, light, photo, plain, preprinted, prepunched, recycled, rough), transparencies, labels, envelopes, cardstock |
| Media weight supported (metric) |
60 to 163 g/m² (Uncoated/Matte, recommended), however up to 175 g/m² Postcards and 200 g/m² HP Matte is allowed in the driver. |
| Media weight supported (U.S. standard) |
15.4 to 42 lb (Uncoated/Matte, recommended), however up to 45 lb Postcards and 51.4 lb HP Matte is allowed in the driver. |
| Physical dimensions |
|
| Maximum dimensions (W x D x H, metric) |
392 x 435 x 244.2 mm |
| Maximum dimensions (W x D x H, U.S. standard) |
15.43 x 17.12 x 9.6 in |
| Weight (metric) |
13.3 kg |
| Weight (U.S. standard) |
29.3 lb |
| Power |
|
| Energy savings feature technology |
HP Auto-On/Auto-Off Technology; Instant-on Technology |
| Power supply type |
Internal (Built-in) power supply |
| Power supply |
110-volt input voltage: 110 to 127 VAC (+/- 10%), 50 Hz (+/- 3 Hz) , 60 Hz (+/- 3 Hz); 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 3 Hz), 60 Hz (+/- 3 Hz)(Not dual voltage, product varies by part number with # Option code identifier) |
| Power consumption |
343 watts (active printing), 6.0 (ready), 0.7 watts (sleep), 0.1 watts (Manual-Off), 0.1 watts (Auto-off/Manual-on), 0.6 watts (Auto-Off/Wake on USB) |
| Print cartridges |
|
| Number of print cartridges |
4 (1 each black, cyan, magenta, yellow) |
| Replacement cartridges |
HP 204A Black LaserJet Toner Cartridge (~1100 yield) CF510A; HP 204A Cyan LaserJet Toner Cartridge (~900 yield) CF511A; HP 204A Yellow LaserJet Toner Cartridge (~900 yield) CF512A; HP 204A Magenta LaserJet Toner Cartridge (~900 yield) CF513A; HP 205A Black LaserJet Toner Cartridge (~1100 yield) CF530A; HP 205A Cyan LaserJet Toner Cartridge (~900 yield) CF531A; HP 205A Yellow LaserJet Toner Cartridge (~900 yield) CF532A; HP 205A Magenta LaserJet Toner Cartridge (~900 yield) CF533A |
| SureSupply note |
HP SureSupply alerts you when your print cartridge is running low and helps you purchase online or locally through HP or a participating retailer. For more information, visit http://www.hp.com/go/SureSupply; only available with Original HP supplies; Internet access required. |
| Printing specifications |
|
| Print technology |
Laser |
| Duplex printing |
No |
| Print resolution (best) |
Up to 600 x 600 dpi |
| Monthly duty cycle |
Up to 30,000 pages |
| Print languages |
HP PCL 6, HP PCL 5c, HP postscript level 3 emulation, PCLm, PDF, URF |
| Printer smart software features |
Apple AirPrint, HP Auto-On/Auto-Off technology, HP JetAdvantage Secure Print |
| Regulatory specifications |
|
| Regulatory model number |
SHNGC-1602-00 |
| Safety |
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009+A2:2013; EN 60825-1:2014 / IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010 / IEC 62479:2010; CAN/CSA C22.2 No. 60950-1-07 2nd Ed.March 27, 2007 Compliance of IEC 60950-1 standard considers all country deviations according to the most recent IECEE CB Bulletin.; Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. |
| Electromagnetic compatibility |
CISPR 22:2008 & CISPR 32: 2012 /EN 55032:2012 - Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010; FCC Title 47 CFR, Part 15 Class B/ICES-003, Issue 6 |
| System requirements |
|
| Minimum system requirements for Windows |
Windows 10, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer. Windows Vista: (32-bit only), 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows XP SP3 or higher (32-bit only): any Intel Pentium II, Celeron or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows Server support is provided via the command line installer and supports Win Server 2008 R2 and higher. |
| Minimum System Requirements for Macintosh |
Apple OS X Sierra(v10.12), El Capitan (v10.11), Yosemite (v10.10); 1.5 GB HD; Internet required; USB |
| Compatible Network Operating Systems |
Windows 10, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer. Windows Vista: (32-bit only), 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows XP SP3 or higher (32-bit only): any Intel Pentium II, Celeron or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows Server support is provided via the command line installer and supports Win Server 2008 R2 and higher. Apple OS X: Sierra(v10.12), El Capitan (v10.11), Yosemite (v10.10); 1.5 GB HD; Internet required; |
| Operating system (supported note) |
Not supportingWindows XP (64-bit) and Windows Vista (64-bit); Not all "Compatible Operating Systems" are supported with INBOX software; Full solution software available only for Windows 7 and newer; Legacy Windows Operation Systems (XP, Vista, and equivalent servers) get print drivers only; Windows Server OS install driver only; Windows RT OS for Tablets (32 & 64-bit) uses a simplified HP print driver built into the RT OS; Linux systems use in-OS HPLIP software |
