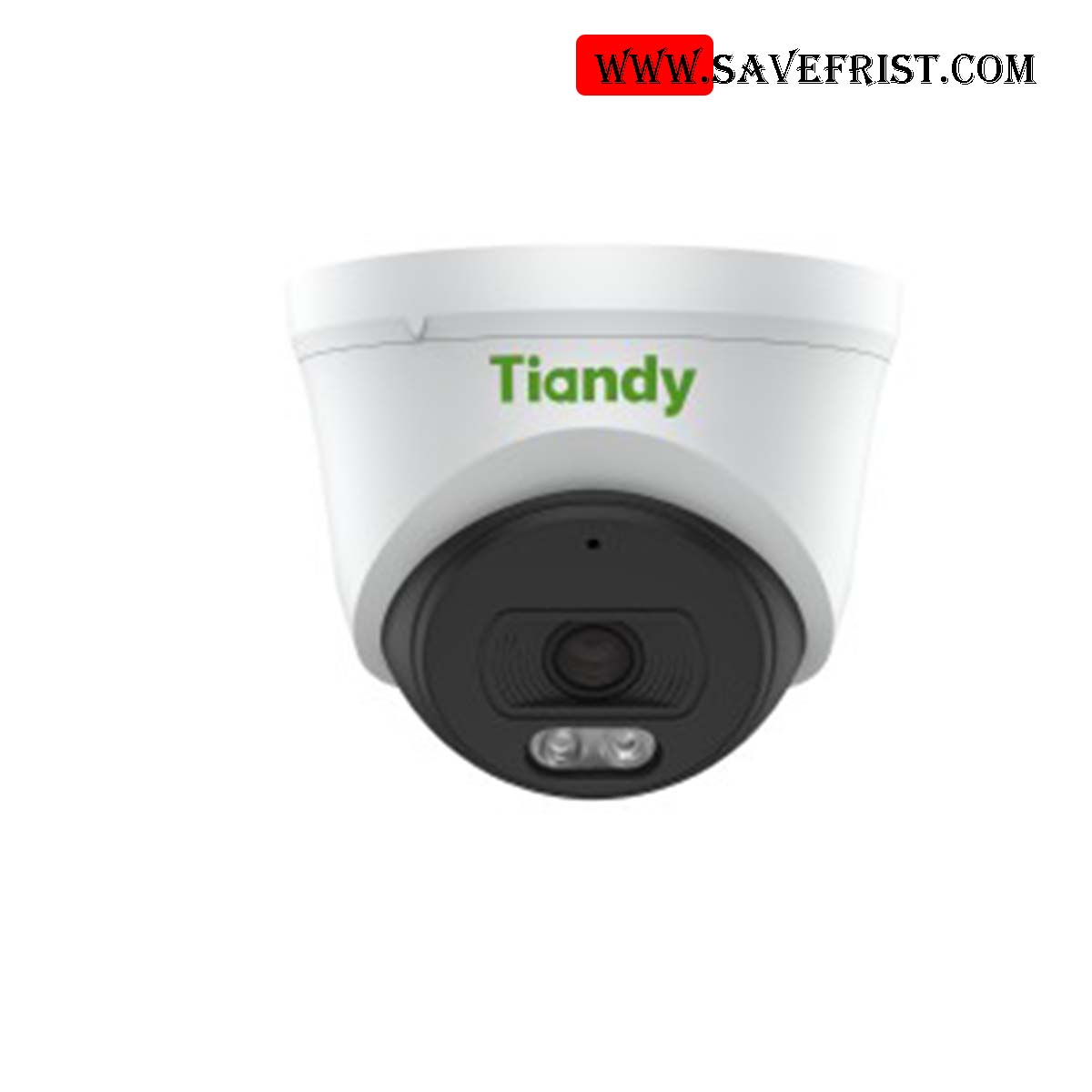

The Tiandy TC-C32XN 2MP IP Network Camera is designed for professional surveillance with superior video quality and advanced security features. Equipped with a 1/2.8” CMOS image sensor, Full HD 1080p resolution, and DWDR technology, this camera ensures clear monitoring even in challenging lighting conditions. Its Smart IR up to 30m, motion detection, perimeter protection, and tripwire alarms make it ideal for both indoor and outdoor security applications. With PoE support, built-in microphone, and ONVIF compatibility, the TC-C32XN provides reliable performance for homes, offices, and businesses.

Key Specifications

Camera

• Image Sensor: 1/2.8” CMOS

• Resolution: 2MP, 1920×1080@30fps

• Min. Illumination: 0.02Lux (Color), 0Lux (B/W with IR)

• Shutter Speed: 1s~1/100000s

• Day & Night: IR-cut filter (ICR)

• WDR: DWDR

• S/N Ratio: >39dB

• Smart IR: Up to 30m

Lens

• Lens Type: Fixed

• Focal Length: 2.8mm

• Aperture: F1.6

• Field of View: H: 104.9°, V: 56.5°, D: 119.2°

Video & Audio

• Video Compression: S+265 / H.265 / H.264

• Bitrate: 32Kbps ~ 6Mbps

• Audio Compression: G.711A / G.711U

• Built-in Microphone: Yes

Features

• Alarms: Motion Detection, Tripwire, Perimeter Protection

• Privacy Masking: 4 areas

• Defog, BLC, HLC, 3D DNR, AGC

Network

• Protocols: HTTP, TCP/IP, UDP, DHCP, DNS, NTP, IPv4, RTSP, ONVIF (Profile S/T)

• Remote Access: Easy7 VMS, EasyLive Plus app

• Connections: 1 × RJ-45 (10/100 Base-T)

General

• Power Supply: DC12V ±25%, PoE IEEE 802.3af

• Power Consumption: Max 7W

• Operating Temperature: -30°C ~ +60°C

• Ingress Protection: IP67

• Dimensions: 117 × 117 × 96 mm

• Weight: 0.35kg
