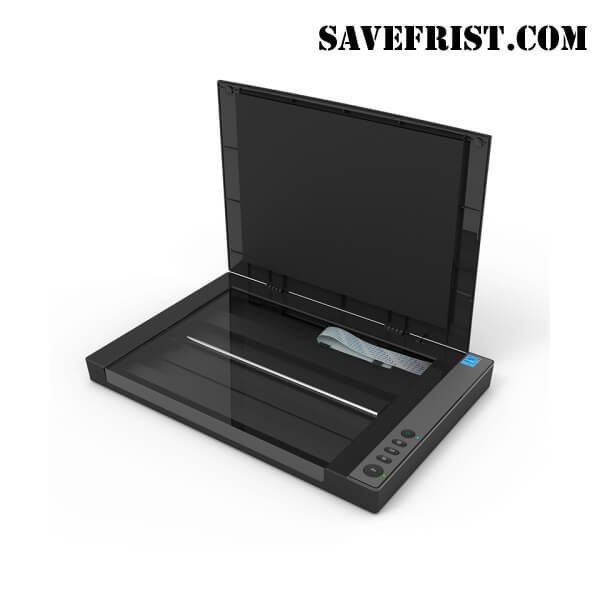

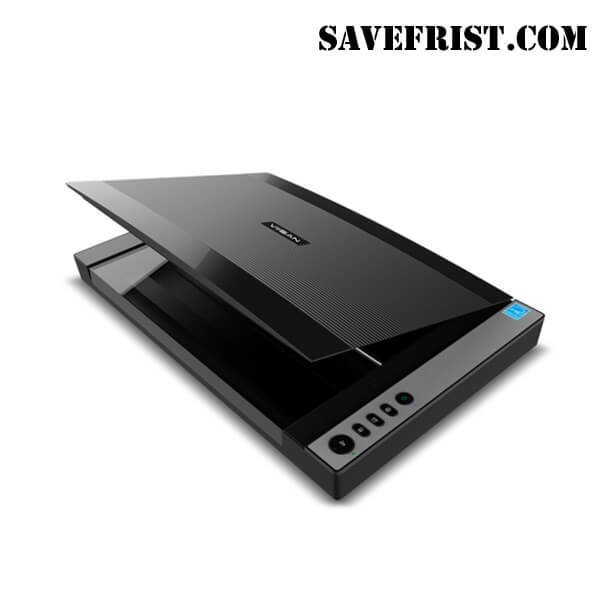

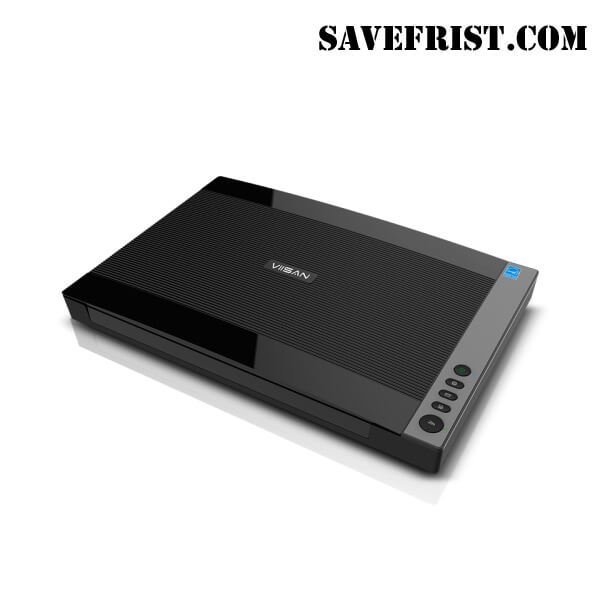

ViiSAN VF3120 Flatbed Scanner
SPECIFICATION | |
Model | ViiSAN VF3120 Flatbed Scanner |
Scanner Type | A3 High Speed Flatbed Scanner |
Optical Sensor | Color CIS |
Light Source | Three-color (RGB) LED |
Optical Resolution | 1200 x 1200 dpi |
Note:WIA only support to 600 dpi | |
Scanning Speed | 8 sec. / A3 page at 200 dpi |
Color Bit Depth | Color 48-bit Input / 24-bit Output |
Gray 16-bit Input / 8-bit Output | |
Max. Scanning Area | 304 x 426 mm (12″ x 17″ ) |
Function Buttons | SCAN / PDF / E-Mail / PRINT |
Output format | BMP、PNG、JPEG、Multi-page PDF、PDF、Multi-page TIF、TIF |
Interface | High Speed USB 2.0 |
Power Supply | 12 VDC/2A, 24W |
(Input: 100~120VAC or 200~240VAC, 50~60Hz) | |
Power Consumption | 8.5W |
Power Saving | 15 min auto power off |
Operating Temperature | 10℃ to 35℃ |
Operating Humidity | 10% to 85% |
Dimensions | 565 x 394 x 61mm |
Weight | Approx. 4.3 kgs (9.4 lbs) |
Driver Protocol | Windows: TWAIN and WIA |
Mac OS: Image Capture (ICA) driver | |
Linux: XSANE | |
Bundled Software | Scanner Driver、ViiScan、Event Utility、OCR Engine |
Operating Systems | Windows® 11 / 10 / 8.1 / 7 |
Mac OS 10.15 or later for Image Capture (ICA) driver only | |
Linux Ubuntu 18.04 or 20.04 |
