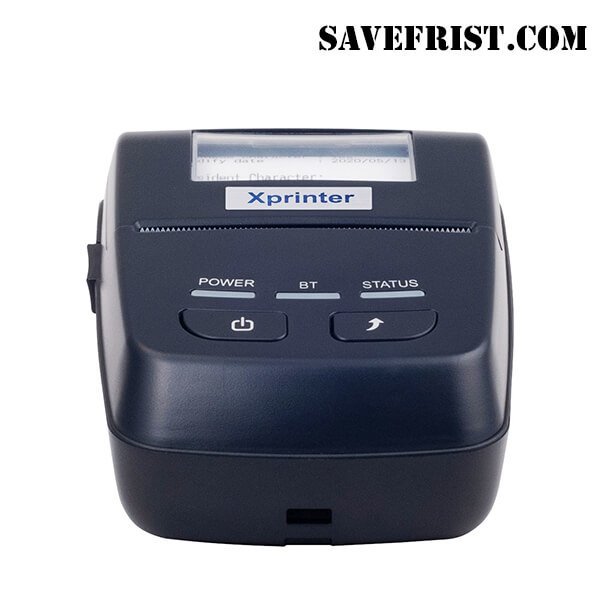

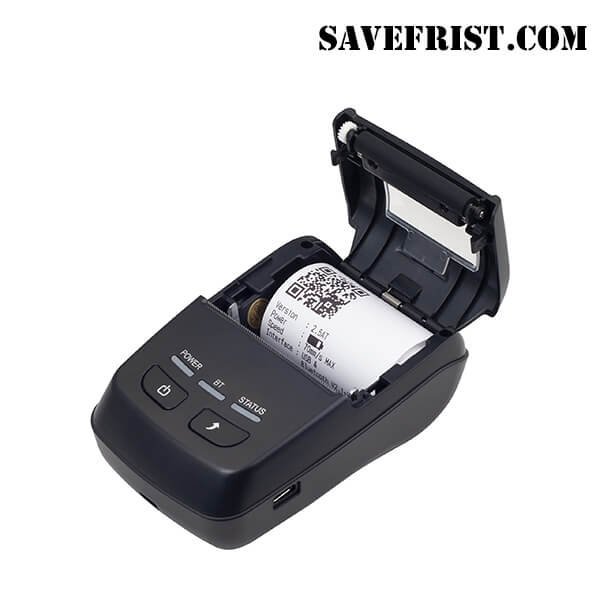

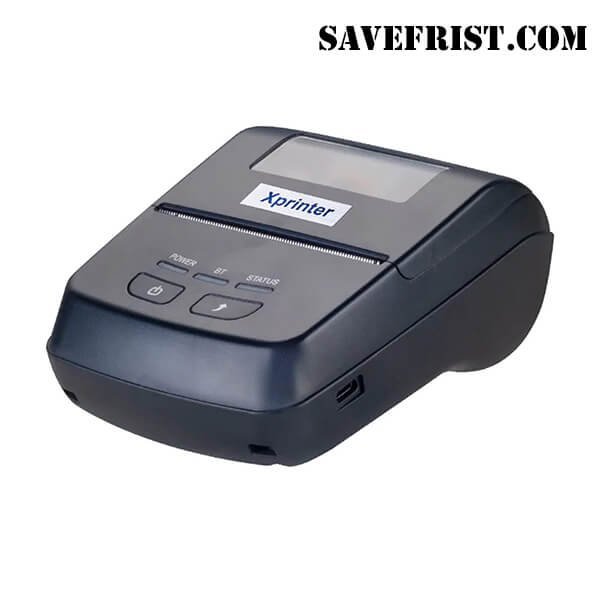

XP-P501A Mini 58mm Thermal Mobile Printer
Model | XP-P501A |
Printing Features | |
Printing method | Direct thermal |
Resolution | 203 DPI |
Line spacing | 3.75mm (Adjustable by commands) |
Print width | 48 mm |
Max.print speed | Max. 70 mm/s |
Paper width | 58 mm |
Paper roll | 40 mm |
diameter | |
Performance Features | |
Interfaces | USB+Bluetooth(1+1) |
Input buffer | 128 Kbytes |
NV Flash | 64 Kbytes |
Emulation | ESC/POS |
Fonts/Graphics/Symbologies | |
Character size | ANK,Font A:1.5×3.0mm(12×24 dots)Font B:1.1×2.1mm(9×17 dots) simplified/traditional Chinese:3.0×3.0mm(24×24 dots) |
Barcode types | 1D:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 |
2D:QRCODE | |
Extended character sheet | PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、 |
PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、 | |
IranII、Latvian、Arabic、PT151(1251) | |
Physical Features | |
Dimension | 124*83*51mm (L*W*H) |
Weight | 0.23 kg |
Compatible systems | |
Systems | Windows/Android/iOS/Mac/Linux |
Power supply | |
Battery | 7.4V/ 2000mAh |
Charging input | DC 5V/2A |
Environmental Conditions | |
Operation environment | 0~45℃,10~80%RH no condensing |
Storage environment | -10~60 ℃,≤10~90% RH no condensing |
