| Specification |
| Maximum Printing Resolution | 600 (horizontal) x 1200 (vertical) dpi |
| Print Head / Ink | Type: | Individual Ink Cartridges |
| Number of Nozzles: | Total 4,352 nozzles |
| Ink Cartridge: | PGI-2700 (Cyan, Magenta, Yellow, Black) |
| Optional: PGI-2700XL (Cyan, Magenta, Yellow, Black) |
| Print Speed*1 (Approx.) | Document: Colour: | 15.5 ipm |
| Based on ISO / IEC 24734. | ESAT / Simplex |
| Document: Colour: | Max. 26.5 ppm*2 |
| Document: Mono: | 24.0 ipm |
| ESAT / Simplex |
| Document: Mono: | Max. 32.5 ppm*2 |
| Printable Width | Up to 203.2 mm (8 inch) |
| Bordered Printing: | Top margin: 3 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (Letter, Legal: Left: 6.4 mm, Right: 6.3 mm) |
| Bordered Auto Duplex Printing: | Top margin: 3 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (Letter, Legal: Left: 6.4 mm, Right: 6.3 mm) |
| Recommended Printing Area | Top Margin: | 45.8 mm |
| Bottom Margin: | 36.8 mm |
| Paper Size | A4, A5, B5, Letter, Legal, Oficio, B-Oficio*, M-Oficio, Foolscap, Legal (India), Executive, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10, C5, Monarch) |
| Custom size** [cassette (upper)]: width 89 - 216.0 mm, length 127 - 355.6 mm, cassette (lower): width 210 - 216.0 mm, length 279.4 - 355.6 mm) |
|
| *Not supported for Mac. |
| **F4 is possible via custom size settings. |

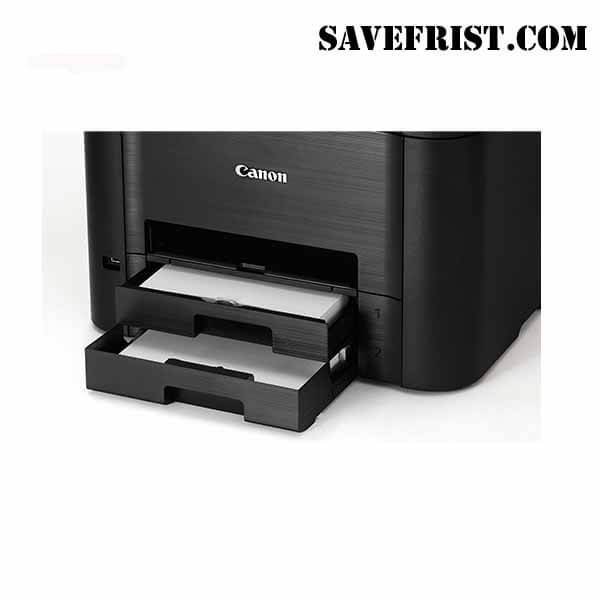

| Paper Handling (Cassette1: Upper) | Plain Paper | A4, A5, B5, Letter, Legal = 250 |
| (Maximum Number) | Photo Paper Pro Luster (LU-101) | A4 = 10 |
| Matte Photo Paper (MP-101) | 4 x 6" = 20, A4 = 10 |
| Photo Paper Plus Glossy II (PP-201) | 4 x 6" = 20, A4 = 10 |
| High Resolution Paper (HR-101N) | A4 = 65 |
| Photo Paper Plus Semi-Gloss (SG-201) | 4 x 6" = 20, A4, 8 x 10" = 10 |
| Envelope | Envelopes (DL, COM10, C5, Monarch) = 10, A4, Letter, Legal = 250 |
| Paper Handling (Cassette2: Lower) | Plain Paper |
| (Maximum Number) |
| Paper Output (Approx.) | 75 pages (A4, Letter, Legal) |
| Support Media for | Type: | Plain Paper |
| Auto 2-sided Printing | Size: | A4, Letter |
| Paper Weight | Cassette 1 (Upper): | Plain Paper: 64 - 105 g/m2, |
| Canon specialty paper: max paper weight: approx. 275 g/m2 |
| (Photo Paper Plus Glossy II PP-201) |
| Cassette 2 (Lower): | Plain Paper: 64 - 105 g/m2 |
| Ink End Sensor | Electrical pulse detect + Dot count |
| Print Head Alignment | Auto / Manual |
| Scan*3 | |
| Scanner Type | Flatbed & ADF |
| Scanning Method | CIS (Contact Image Sensor) ×2 (2-sided) |
| Duplex Scanning | Available (Single pass 2-sided scan) |
| Optical Resolution *4 | 1200 x 1200 dpi |
| Selectable Resolution *5 | 25 - 19200 dpi |
| Scanning Bit Depth (Input / Output) | Grayscale: | 16 bit / 8 bit |
| Colour: | 48 bit / 24 bit (RGB each 16 bit / 8 bit) |
| Scanning Speed*6 *14 (Approx.) | Document (ADF): Colour: | 16.0 ipm |
| scESAT30secA / Simplex |
| Maximum Document Size | Flatbed | A4, Letter (216 x 297 mm) |
| ADF | A4 / Letter / Legal |
| Copy | |
| Maximum Document Size | A4, Letter (216 x 297 mm) |
| ADF: A4 / Letter / Legal |
| Compatible Media | Size: | A6, A4, A5, B5, Letter, Legal, Oficio, B-Oficio, M-Oficio, Foolscap, Legal (India), Executive, 4 x 6", 5 x 7" |
| Type: | Plain Paper |
| Photo Paper Plus Glossy II (PP-201) |
| Photo Paper Plus Semi-Gloss (SG-201) |
| Matte Photo Paper (MP-101) |
| Photo Paper Pro Luster (LU-101) |
| Image Quality | 2 positions (Standard, High) |
| Density Adjustment | 9 positions, Auto intensity (AE copy) |
| Copy Speed*9 (Approx.) | Document: Colour: | 11 sec |
| Based on ISO / IEC 29183. | sFCOT / Simplex |
| Click here for summary report | Document (ADF): Colour: | 11.5 ipm |
| Click here for Document Print and Copy Speed Measurement Conditions | ESAT / Simplex |
| Document (ADF): Mono: | 22.0 ipm |
| ESAT / Simplex |
| Document (ADF): Colour: | 6.0 ipm |
| ESAT / Duplex |
| Document (ADF): Mono: | 10.0 ipm |
| ESAT / Duplex |
| Multiple Copy | Mono / Colour: | Max. 99 pages |
| Fax | |
| Type | Desktop Transceiver (Super G3 / Colour Communication) |
| Applicable Line | PSTN (Public Switched Telephone Network) |
| Transmission Speed *8 | Black: | Approx. 3 sec (33.6 kbps) |
| Colour: | Approx. 1 min (33.6 kbps) |
| Fax Resolution | Black: | 8 pels/mm x 3.85 lines/mm (Standard) |
| 8 pels/mm x 7.7 lines/mm (Fine) |
| 300 x 300 dpi (Extra Fine) |
| Colour: | 200 x 200 dpi |
| Print Size | A4, Letter, Legal |
| Scanning Width | 208 mm (A4), 214 mm (Letter) |
| Modem Speed | maximum 33.6 kbps (Automatic fall back) |
| Compression | Mono: | MH, MR, MMR |
| Colour: | JPEG |
| Gradation | Mono: | 256 levels |
| Colour: | 24 bit Full Color (RGB each 8 bit) |
| ECM (Error Correction Mode) | ITU - T T.30 compatible |
| Automatic Dialing | Coded Speed Dialing | Max. 100 locations |
| Group Dialing | Max. 99 locations |
| Transmission/Reception Memory*9 | Approx. 250 pages |
| PC Fax | |
| PC FAX | Windows: Available, Mac: Available |
| Destination Number | 1 location |
| Black / Colour | B / W transmission only |
| Network | |
| Protocol | SNMP (Standard MIB), TCP / IP |
| Wired LAN | Network Type: | IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
| Data Rate: | 10 M / 100 Mbps (auto switchable) |
| Wireless | Network Type: | IEEE802.11b/g/n |
| Frequency Band: | 2.4 GHz |
| Supported Channels: | 13-Jan |
| Range: | indoor 50 m (depends on the transmission speed and conditions) |
| Security: | WEP64 / 128 bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES) |
| Direct connection (Wireless LAN) | Available |
| Printing Solutions | |
| Apple AirPrint | Available |
| Layout | 1-up (bordered only) | Letter, A4, 4 x 6", 5 x 7", 8 x 10", |
| A5, B5, Legal, A6, Oficio, M-Oficio, Foolscap, Legal (India), Executive, Envelopes (DL, COM10, C5, Monarch) |
|
| Custom size [cassette (upper)]: width 89 - 216.0 mm, length 127 - 355.6 mm, cassette (lower): width 210 - 216 mm, length 279.4 - 355.6 mm) |
| Print Quality *12 | Standard / High |
| Microsoft Mobile Print | Available |
| Layout | 1-up (bordered only) | Letter, A4, 4 x 6", 5 x 7", 8 x 10", |
| A5, B5, Legal, Envelopes (DL, COM10) |
| Print Quality *12 | Standard / High |
| Mopria | Available |
| Canon Print Service Plugin | Available |
| (for Android OS) |
| Cloud Service | from smartphone or tablet: | Available |
| from printer: | Available |
| Canon PRINT | Available |
| (for iOS/Android) |
| Canon Easy-PhotoPrint |
| (for Windows RT) |
| Layout | 1-up (bordered only) | Letter, A4, 4 x 6", 5 x 7", 8 x 10", |
| A5, B5, Legal, A6, Oficio, B-Oficio, M-Oficio, Foolscap, Legal (India), Executive |
| Print Quality | Fixed |
| System Requirements | Windows: | Windows 10, Windows 8, Windows 7 SP1, Windows Vista SP2 |
| Macintosh: | Mac OS X 10.8.5 and later |
| Others: | Chrome OS |
| General Specifications | | |
| Operation Panel | Display: | LCD (3.5 inch / 8.8 cm TFT Colour / Touch) |
| Language: | 33 Languages Selectable: Japanese / English (mm & inch) / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovak / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Croatian / Thai / Vietnamese |
| ADF | Paper Handling (Plain Paper 17 lb. Bond) | A4 / Letter = 50, Legal = 10, Others = 1 |
| Auto 2-sided | Available (Single pass 2-sided scan) |
| Interface | USB A Port | USB flash memory |
| USB B Port | USB 2.0 |
| USB Flash Memory | File Format *15 | JPEG and TIFF (Exif-compliant) taken by DCF (Ver.1.0 / 2.0) compliant digital cameras. (Exif ver2.2 / 2.21 / 2.3 compliant) |
| Operating Environment *12 | Temperature: 5 - 35°C |
| Humidity: 10 - 90% RH (no dew condensation) |
| Recommended Environment *13 | Temperature: 15 - 30°C |
| Humidity: 10 - 80% RH (no dew condensation) |
| Storage Environment | Temperature: 0 - 40°C |
| Humidity: 5 - 95% RH (no dew condensation) |
| Quiet mode | Available |
| Acoustic Noise (PC Print) (Approx.) | Document (A4, Mono, Default)*10 | 56 dB(A) |
| Power | AC 100 - 240 V, 50/60 Hz |
| Power Consumption (Approx.) | Standby (scanning lamp is OFF) | 0.9 W |
| USB connection to PC |
|
| OFF | 0.3 W |
| Copying*11 | 27 W |
| (USB connection to PC): |
| Environment | Regulation: | RoHS (EU, China), WEEE (EU) |
| Duty Cycle | Up to 30,000 pages/month |
| Dimensions (W x D x H) (Approx.) | Factory configuration | 463 x 394 x 351 mm |
| Paper installed (A4 / LTR) | 463 x 459 x 351 mm |
| Output / ADF trays extended | 463 x 607 x 389 mm |
| Weight (Approx.) | 12.9 kg |
