| Printer |
| Maximum Printing Resolution |
4800 (horizontal)*1 x 1200 (vertical) dpi |
| Print Head / Ink |
Number of Nozzles: |
Total 1,472 nozzles |
| Ink Bottles |

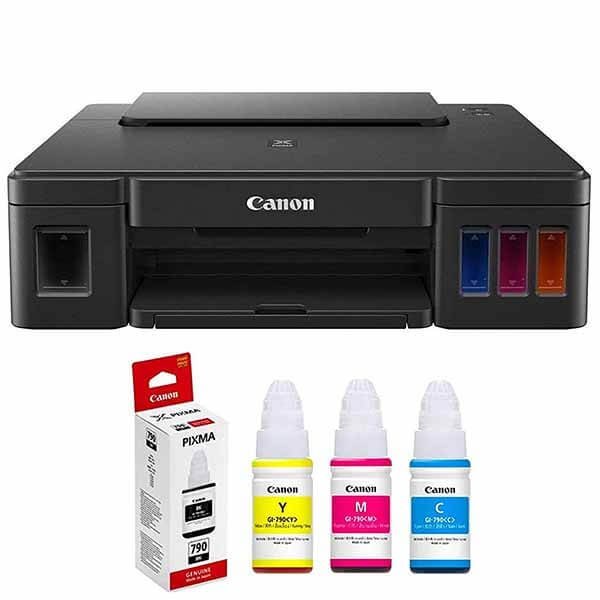

GI-790 (Black, Cyan, Magenta, Yellow) |
| Print Speed*2 |
Document: Col |
ESAT / Simplex |
Approx. 5.0 ipm |
| Based on ISO / IEC 24734 |
Document: B / W |
ESAT / Simplex |
Approx. 8.8 ipm |
|
Document: Col |
FPOT Ready/Simplex |
Approx. 19 sec |
|
Document: B / W |
FPOT Ready/Simplex |
Approx. 13 sec |
|
Document: Col |
FPOT Sleep/Simplex |
Approx. 21 sec |
|
Document: B / W |
FPOT Sleep/Simplex |
Approx. 14 sec |
|
Photo (4 x 6") |
PP-201 / Borderless |
Approx. 60 sec |
| Printable Width |
Bordered: |
Up to 203.2 mm (8 inch) |
| Borderless: |
Up to 216 mm (8.5 inch) |
| Printable Area |
Borderless Printing*3 |
Top / Bottom / Right / Left margin: each 0 mm (Supported Paper Size: A4 / Letter / 4 x 6" / 5 x 7" / 8 x 10" / Square (5 x 5") / Business Card) |
| Bordered Printing |
Top margin: 3 mm, |
| Bottom margin: 5 mm, |
| Left / Right margin: each 3.4 mm |
| (Letter / Legal: Left: 6.4 mm, Right: 6.3 mm) |
| Recommended Printing Area |
Top margin: |
31.2 mm |
| Bottom margin: |
32.5 mm |
| Paper Size |
A4, A5, B5, Letter, Legal, 4 x 6", 5 x 7", 8x 10", Envelopes (DL, COM10), Square (5 x 5"), Business Card, Custom size (width 55 - 215.9 mm, length 89 - 676 mm) |
| * F4 is possible via custom size settings. |
| Paper Handling (Rear Tray) |
Plain Paper |
A4, A5, B5, Letter = 100, Legal = 10 |
| (Maximum Number) |
High Resolution Paper (HR-101N) |
A4, Letter = 80 |
|
Photo Paper Plus Glossy II (PP-201) |
A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10, Square (5 x 5") = 20 |
|
Photo Paper Plus Semi-Gloss (SG-201) |
A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10 |
|
Matte Photo Paper (MP-101) |
A4, Letter = 10, 4 x 6" = 20 |
|
Envelope |
European DL / US Com. #10 = 10 |
|
Glossy Photo Paper "Everyday Use" (GP-508) |
A4 = 10, 4 x 6" = 20 |
|
Photo Paper Plus Glossy II (PP-208) |
A4, 4 x 6" = 10 |
|
Photo Sticker |
PS-108, PS-308R, PS-208, PS-808 = 1 |
| Paper Weight |
Rear Tray |
Plain Paper: 64 - 105 g/m2, Canon specialty paper: max paper weight: approx. 275 g/m2 Photo Paper Plus Glossy II (PP-201) |
| Ink End Sensor |
Dot count |
| Print Head Alignment |
Manual |
| System Requirements |
Windows: |
Windows 10, Windows 8.1, Windows 7 SP1 |
| |
Macintosh: |
Mac OS is not supported |
| General Specifications |
|
| Interface |
USB 2.0 Hi-Speed |
| Paper Output Tray |
A4, Letter = 50, Legal = 10 |
| Operating Environment*4 |
Temperature: |
5 - 35°C |
| Humidity: |
10 - 90% RH (no dew condensation) |
| Recommended Environment*5 |
Temperature: |
15 - 30°C |
| Humidity: |
10 - 80% RH (no dew condensation) |
| Storage Environment |
Temperature: |
0 - 40°C |
| Humidity: |
5 - 95% RH (no dew condensation) |
| Quiet Mode |
Available |
| Acoustic Noise (PC Print)*6 |
Plain Paper (A4, B/W) |
Approx. 54.5 dB(A) |
| Power |
AC 100 - 240 V; 50/60 Hz |
| Power Consumption |
Connection to PC |
USB |
| OFF: |
Approx. 0.2 W |
| Standby (scanning lamp is off): |
Approx. 0.6 W |
| (USB connection to PC) |
| Standby (all ports connected, scanning lamp is off) |
Approx. 0.6 W |
| Printing*7: G1010 |
Approx. 11 W |
| Environment |
Regulation: |
RoHS (EU, China), WEEE (EU) |
| Dimension (W x D x H) |
Factory configuration |
Approx. 445 x 330 x 135 mm |
| Output / ADF trays extended |
Approx. 445 x 529 x 253 mm |
| Weight |
Approx. 4.8 kg |
